Set 42-Inch Kitchen Island Clearances in ArchiMaster 3D

Getting the walkway around a kitchen island right before the contractor starts is less expensive than finding out after the range and sink are in. In ArchiMaster 3D, you set the island clearance as an exact number on the floor plan, then walk the path in 3D to see whether the aisle truly works. A 42-inch clearance is the number most kitchens need on the work side, but the measurement only counts if you take it from the counter edge, not the cabinet box. This guide covers the code and NKBA figures, the step-by-step method in ArchiMaster 3D, and the mistakes that turn a workable island into a tight squeeze.

• A 42-inch aisle is the NKBA-recommended single-cook work clearance between a kitchen island counter edge and the opposite counter edge, not the cabinet box.
• Code-compliant layouts often accept 36 inches for a circulation walkway, but primary prep and cooking aisles need 42 to 48 inches to remain workable.
• In ArchiMaster 3D, use the Dimension tool to set and lock edge-to-edge distances, then open the 3D walkthrough to test door swings and traffic.
• If the island has seating on one side, plan at least 44 to 60 inches of clearance behind the stools so people can pass while someone eats.
• Set the exact clearance before you hire a contractor because moving an island six inches after plumbing or electrical rough-ins costs far more than moving it on screen.

What Code and Planning Guidelines Actually Require

There is no single national kitchen island clearance code. The National Kitchen & Bath Association planning guidelines recommend a 42-inch work aisle for a one-cook kitchen and 48 inches when two people need to work or pass at once. Many local building codes allow a 36-inch circulation aisle, which is legal for a walkway but uncomfortable as the main prep path. Measurements are taken from the front edge of the countertop, not the cabinet box. A 1.5-inch overhang on each side reduces the cabinet-to-cabinet distance by three inches, which is enough to turn a planned 42-inch aisle into a 39-inch bottleneck.

For a U-shaped kitchen island clearance code question, the number to lock is the aisle between the island and the U's base cabinets. On the work side, use 42–48 inches. On a pass-through side, 36 inches can be compliant. If the island faces a refrigerator or wall oven, add more room because those doors swing out 30–36 inches. ArchiMaster 3D's true-to-scale library makes it practical to check these clearances with the dimension and walkthrough tools instead of doing the math on a paper sketch.

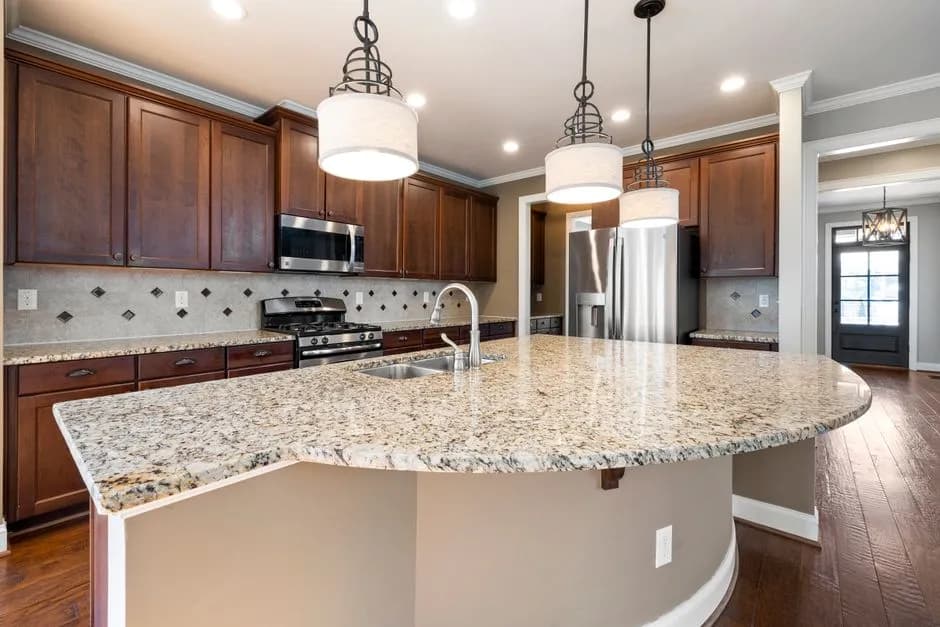

Why 42 Inches Is the Workhorse Number

Forty-two inches is the practical work aisle for one cook because it leaves room to open a lower cabinet, turn around, and let someone pass without touching. At 36 inches, an open dishwasher door across the aisle leaves a gap too narrow for a normal walking stride. At 48 inches, the kitchen starts to add extra steps between the sink, range, and refrigerator. The 42-inch figure is not a design preference; it is the midpoint between cramped and oversized. When you set that dimension in ArchiMaster 3D, the island stays tied to the kitchen work triangle, so the range, sink, and refrigerator remain within a comfortable step.

“A 42-inch kitchen aisle is not a decoration decision; it is the distance between a kitchen that works and a kitchen that bottlenecks.”, ArchiMaster 3D Journal

Set Exact Island Clearances in ArchiMaster 3D Step by Step

1. Draw the room at true interior dimensions

Measure the room from finished wall to finished wall, including any bump-outs for a pantry or chimney chase. In ArchiMaster 3D, draw the room shell with the wall tools and type the wall lengths in the properties panel instead of dragging to an approximate size. Work in inches or millimeters consistently. Set the wall height to the real ceiling height so the later 3D walkthrough feels true to scale. A quarter-inch error on a wall makes the island math wrong before any cabinet is placed.

2. Place the island and set its exact footprint

Pick an island from the kitchen library or build a custom shape with the cabinet tools. Open the object properties and enter the island length, width, and height. Include the countertop overhang because clearance starts at the outer edge of the counter, not the cabinet base. If the island is 36 by 80 inches with a 1.5-inch overhang, the measurement starts at 39 by 83 when you are testing the aisle. The ArchiMaster 3D product suite uses one realistic cabinet and counter library, so the overhang appears and measures the way it will in the installed kitchen.

3. Lock the 42-inch dimension with the Dimension tool

Select the Dimension tool, click the outer edge of the island counter, then click the outer edge of the opposite perimeter counter. The current distance appears on the plan. Type 42 in the dimension field or use the arrow-key nudge to move the island in small increments until the tool reads exactly 42 inches. Check the main work aisle first, then the secondary aisle. In a U-shaped kitchen, verify the clearance at the sink wall and the range wall separately, because one dimension fixed at 42 can still leave the other at 39.

4. Test door swings, appliance paths, and the walkthrough

Open the 3D view, set the camera height to eye level, and walk the route from the range to the refrigerator, then from the sink to the island. If the model has appliance doors, open them or add a swing arc to see whether they block the aisle. A floor plan that reads 42 inches can feel tight in 3D once the cabinet depth and counter shadows are visible. Use the 3D home design software's walkthrough to show the contractor the exact path and the locked dimensions before drywall, plumbing, or electrical rough-in begins.

Clearance Cheat Sheet for Common Island Configurations

• Single cook, no seating: 42 inches between island and perimeter counters.
• Two cooks or frequent pass-through: 48 inches.
• Circulation-only aisle, no prep work: 36 inches minimum.
• Island with stools on one side: 44–60 inches behind the stool backs for a walking path.
• Across from a refrigerator, wall oven, or dishwasher: 48–54 inches so appliance doors can open without blocking the aisle.

Common Island Clearance Mistakes and How to Fix Them

The most expensive mistake is measuring from the cabinet base instead of the counter edge. An overhang of just 1.5 inches per counter can turn a planned 42-inch aisle into 39 inches on site, which often fails the comfort test and can conflict with the contractor's install. Another common error is forgetting the walkway behind island seating: a 42-inch aisle on the work side is correct, but if the back side has stools, the aisle behind the stools needs more room. Fix both before rough-in by selecting the island and typing the correct offset in ArchiMaster 3D. If a floor joist, plumbing line, or duct forces the island to move, adjust the dimension and test the traffic pattern again.

Contractors routinely flag islands placed too close to a range wall because the heat, splatter, and open oven door all need working room. A 36-inch aisle that meets a general circulation code can still violate the manufacturer's required clearance for a slide-in range or a refrigerator with French doors. In the model, keep the 42-inch primary aisle intact and gain inches elsewhere, such as by reducing a secondary aisle or choosing an island with a smaller overhang. When you present a drawn plan with dimensions locked, the conversation with the contractor shifts from guesswork to execution. This is the same approach detailed in Plan Your Kitchen Remodel in 3D Before You Hire a Contractor.

From Clearance Check to Contractor-Ready Plan

Once the island clearances are locked, the rest of the remodel plan gets easier. Use the same model to place lighting over the island, test the work triangle, and choose the cabinet finish. A full 3D plan with precise dimensions helps a contractor give a more accurate bid, because there is no ambiguity about where the island sits. It also gives you a reference document if a subcontractor suggests moving the island during framing. Before this fall's bids go out, walk through the model at real eye height with a free trial of ArchiMaster 3D.
