ArchiMaster 3D vs Planner 5D for Attic Bedrooms (2026)

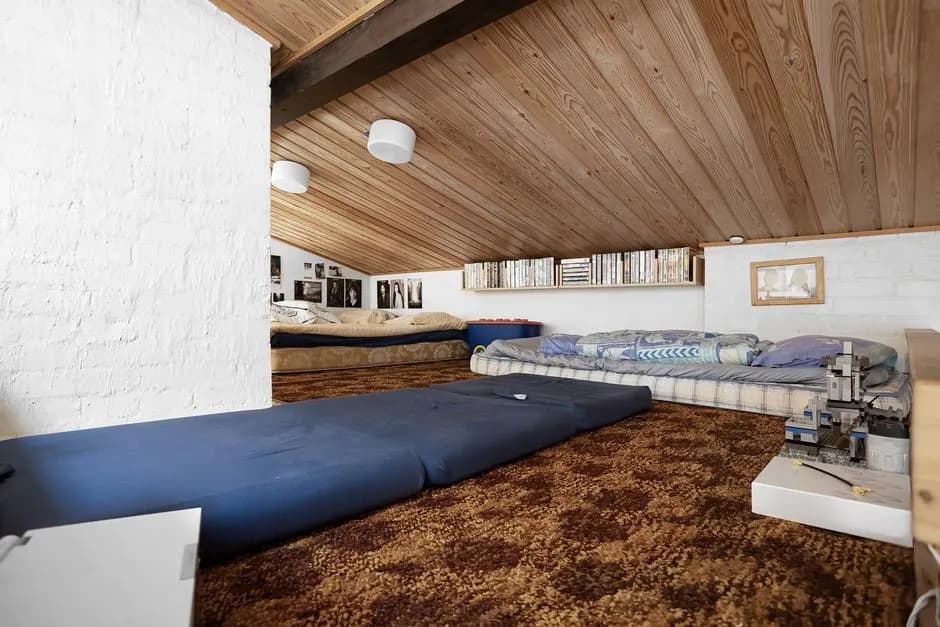

A sloped ceiling is wall, ceiling, and the tightest clearance dimension in an attic bedroom all at once. For that job, ArchiMaster 3D is the stronger tool when the design has to move from first sketch to buildable geometry: it creates sloped ceilings from real roof pitches and trims walls automatically, while Planner 5D relies on angled catalog objects and manual wall-height edits. The difference shows up most in dormers, knee walls, and any place where a wall meets a roof plane. This comparison tests both workflows on the same attic bedroom problem and explains which tool to reach for at each stage.

• ArchiMaster 3D models sloped ceilings as roof-driven surfaces, so walls cut cleanly at the roofline and stay accurate when the pitch changes.
• Planner 5D can approximate an attic look with angled roof objects and per-segment wall heights, but there is no unified roof plane that updates the whole room.
• Dormers are native roof edits in ArchiMaster 3D; in Planner 5D a dormer must be assembled from separate blocks and will not automatically cut the roof opening.
• ArchiMaster 3D carries the slope into 2D plans, dimensions, and material lists; Planner 5D is faster for a visual concept but loses dimension fidelity.
• One-time licensing makes ArchiMaster 3D the cheaper option for an ongoing remodel, while Planner 5D's catalog requires a subscription for full use.

How ArchiMaster 3D Models a Sloped Ceiling

ArchiMaster 3D works from the roof down rather than from the wall up. You draw the attic floor plan using full-height walls, then apply a roof with the actual pitch, such as 8:12 or 12:12. The software trims every wall where the roof plane crosses it, and the resulting sloped ceiling is a live surface, not a decorative wedge. Because the slope is tied to the roof, changing the pitch updates the ceiling line, wall heights, and the flat ceiling area at the ridge in one move. The same roof-wall connection is part of the broader 3D home design feature set that drives all ArchiMaster 3D editions.

• Draw the attic floor plan at full wall height.
• Apply a roof plane with the true pitch. ArchiMaster 3D trims walls where they intersect the roof.
• Set the knee wall height to control how much vertical wall remains below the slope.
• Adjust the flat ceiling band at the ridge or collar tie height.
• Insert a dormer on the roof face. The roof opening and cheek walls are generated as one unit.
• Place a bed, dresser, or built-in under the slope and walk the model in 3D to check headroom.

The practical payoff is clearance testing. An attic bedroom commonly fails at the point where a 36-inch-high dresser meets a ceiling sloping at 45 degrees. ArchiMaster 3D shows that collision in true scale, so the design either pulls the furniture away from the slope or raises the knee wall before a contractor ever walks the site.

Why the wall-top profile matters

Most online home tools let you change wall height, but they do not store a sloped top edge as editable geometry. ArchiMaster 3D keeps each wall segment's top profile attached to the roof plane. That means baseboards, wall coverings, wainscoting, and even wall-mounted lights follow the actual angle of the ceiling. When a roof pitch changes from 10:12 to 12:12, the wall tops, ceiling plane, and any interior trim adjust together. For a pro, that single connection prevents the most common attic modeling error: a wall that visually touches the roof in 2D but leaves a gap in section. This is one reason what 3D home design software does matters more than render quality alone.

What Planner 5D Offers for Attic Bedrooms

Planner 5D is a browser-based home design tool built for speed. It places furniture, paint colors, and catalog objects quickly, and it has a gentler initial learning curve. For an attic bedroom, users typically add sloped roof or ceiling objects from the catalog and manually lower individual wall segments to suggest a slope. The result reads well as a concept render: a room with angled planes, furniture, and lighting. What Planner 5D does not provide is a true roof-surface workflow. There is no live roof plane that trims all walls at once, no automatic dormer opening, and no editable wall-top profile tied to the pitch.

That limitation shows up when the design changes. In ArchiMaster 3D, moving a dormer or changing a roof pitch updates the ceiling and walls around it. In Planner 5D, the user repositions several objects and re-enters height values for each wall segment. For a quick visualization, that manual step is tolerable. For a dimensioned plan, it is the exact point where errors enter.

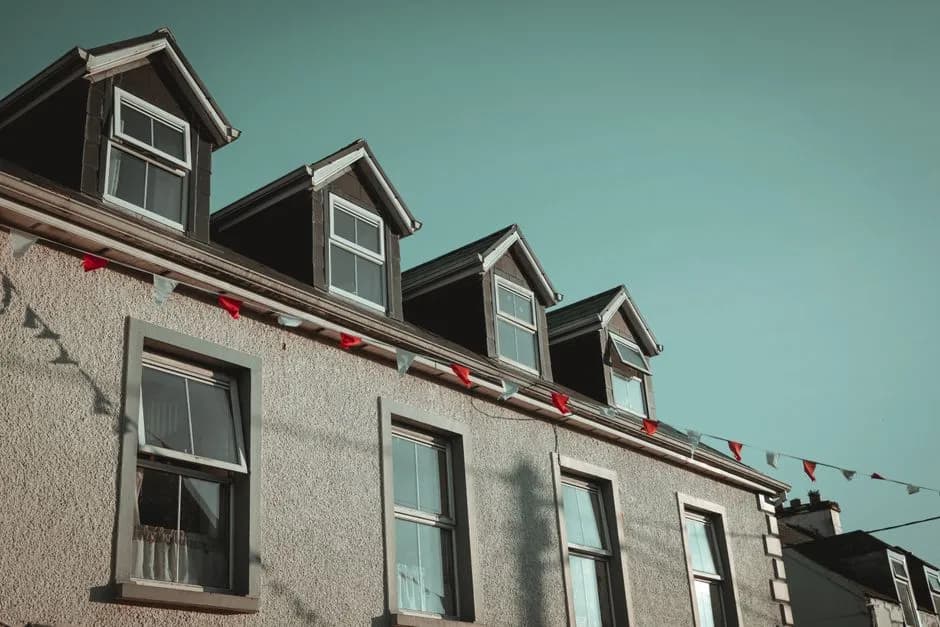

Dormers, Knee Walls, and Headroom Geometry

A dormer is the feature that separates visual attic tools from buildable attic tools. In ArchiMaster 3D, you select a roof face and insert a dormer. The software cuts the opening, adds the cheek walls, and attaches the dormer roof at the correct height. The room below automatically gains the dormer volume, and the surrounding sloped ceiling updates. In Planner 5D, a dormer is assembled from separate wall and roof objects. The main roof does not receive an opening, so the interior view can look correct only if the user hides or angles the roof object manually.

Knee walls are equally important. A knee wall is the short vertical wall under a sloped ceiling, usually 4 to 5 feet tall. ArchiMaster 3D treats it as a wall with a sloped top edge, so you can set its height and immediately see the flat ceiling area above. This controls where a bed, desk, or built-in can fit. The clearance test is concrete: a 36-inch-high dresser against a 45-degree slope should sit far enough out that its top back corner does not intersect the ceiling. ArchiMaster 3D shows that collision in true scale. Planner 5D shows the same objects, but the slope is not a live plane, so the collision check is visual rather than dimensional.

Cost, Licensing, and Output Quality

Cost is the clearest practical difference for a homeowner managing a single attic remodel. ArchiMaster 3D is sold as a one-time license through the pricing page, so the slope, dormer, and material list tools stay available for the length of the project. Planner 5D is free for a basic browser workspace, but its full catalog, high-resolution renders, and many save options require a recurring subscription. An attic bedroom that takes three months to plan and build costs less in software with the one-time license.

Output quality depends on the stage. Planner 5D produces fast concept views that help a homeowner decide between a bright neutral palette and a wood-clad attic. ArchiMaster 3D produces orthographic 2D plans, dimension strings, and photoreal renders from the same model. That means the as-built measurement on the permit drawing matches the render the family reviewed. The home design statistics roundup shows why accurate pre-construction models prevent costly change orders.

Which Tool for Which Attic Project

Choose Planner 5D when the goal is a quick concept: a homeowner comparing two paint colors in a finished attic, or a renter trying furniture layouts. Choose ArchiMaster 3D when any of the following are true: the attic has dormers, the roof pitch is shared with an addition or remodel, the plan must be dimensioned for a contractor, or the homeowner wants to test headroom before buying a bed or built-in. ArchiMaster 3D's one license also covers the rest of the house, so a whole-home remodel does not require switching tools.

• Visual concept in an afternoon: Planner 5D
• Buildable attic plan with dormer openings: ArchiMaster 3D
• Headroom clearance test under a 10:12 roof: ArchiMaster 3D
• Color and furniture exploration in a browser: Planner 5D
• One model for 2D plans, 3D views, and material list: ArchiMaster 3D

“A sloped ceiling is only a style choice until it meets a bed frame. ArchiMaster 3D makes that meeting a dimension.”, ArchiMaster 3D Journal
