Small Bathroom Design 2026: 5x8 Layout to 3D Walkthrough

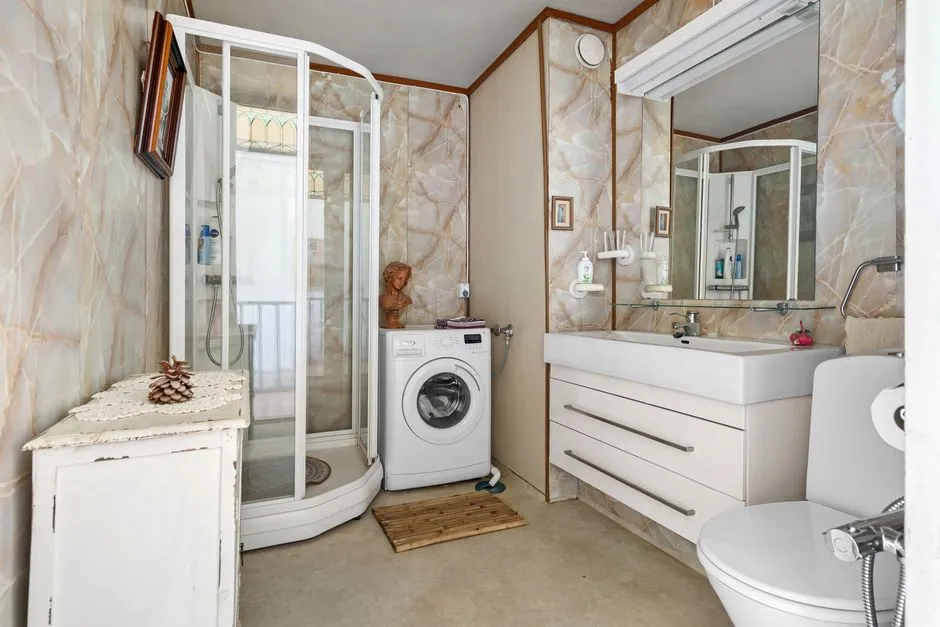

A successful 5x8 bathroom design in 2026 starts with two fixed truths: the room is 40 square feet, and every inch has to earn its place. You can move from a rough 5x8 layout to a walkable 3D model in under an hour using ArchiMaster 3D, and that model catches clearance and sightline problems that a 2D floor plan cannot. The most useful sequence is not inspiration first; it is measurement, fixture placement, then a first-person walkthrough before you buy a single tile. This guide walks through the clearance rules, three buildable layouts, and a step-by-step ArchiMaster 3D workflow for a small bathroom remodel.

• A standard 5x8 bathroom measures 5 feet wide by 8 feet long, 40 square feet; three full fixtures fit when you use a 60-inch tub, a 24-inch-deep vanity, and 15 inches of toilet centerline clearance.
• 3D planning is not just visualization: it exposes door-swing collisions, knee clearance problems, and mirror sightlines before demolition starts.
• The most buildable 5x8 plan places the tub or shower along the 5-foot back wall, the toilet beside it, and a slim vanity on the longer wall.
• ArchiMaster 3D's true-to-scale fixture library and first-person walkthrough let you test two or three layouts in one afternoon.
• You can download a free ArchiMaster 3D trial and model your exact bathroom before buying fixtures or tile.

The 5x8 Bathroom: Working with 40 Square Feet

A 5x8 bathroom is exactly 5 feet wide and 8 feet long, measured inside the framing. That gives 40 square feet, which is the practical minimum for a full three-piece bath in many North American homes. The width is the real constraint: a standard bathtub is 60 inches long, so it must run along the 5-foot back wall or along the 8-foot wall if you sacrifice floor space. Building codes commonly require 21 inches of clear floor space in front of a toilet, and a toilet centerline should be at least 15 inches from a side wall or vanity. A vanity needs 21 to 24 inches of depth, and the entry door should give you at least 24 inches of clear opening. Those numbers leave very little room for error.

There are three buildable families for a 5x8 bathroom. The full bath puts a 60-inch tub across the back wall, the toilet on the same wall or adjacent, and a 24-inch-deep vanity on the long wall. The three-quarter bath swaps the tub for a 36-inch shower, which frees floor space for a wider vanity or a linen cabinet. The wet room, which is growing in 2026, waterproofs the entire back wall and uses a curbless shower with a freestanding tub or a single glass panel. The companion 5x8 bathroom layouts for 2026 post models three of these plans in 3D so you can compare clearances side by side.

Why 3D Planning Beats Graph Paper for Small Bathrooms

Graph paper is fine for confirming that a tub and toilet can occupy the same rectangle. It fails at the moments that actually make a small bath feel wrong: the door swings into the vanity, the toilet paper holder ends up behind the door, the mirror reflects the shower instead of the window, or the vanity drawer hits the toilet supply line. A 3D model in ArchiMaster 3D is a collision test for those decisions. You can set the door to swing open and watch it clear the sink by two inches or clip it by half an inch. You can drop the camera to eye level and see what you will see when you walk in. That first-person view is the non-obvious advantage of home design software: it converts code clearances into lived space.

Step-by-Step: Model a 5x8 Bathroom in ArchiMaster 3D

Set the shell and fixed points

Start a new project in ArchiMaster 3D and draw the room shell at 5 feet by 8 feet. Set the ceiling height, usually 8 feet, and add the entry door on a long wall if you can. Mark fixed points: the window, the plumbing stub for the toilet, the drain location for the tub or shower, and any HVAC register. In a small bath, the drain location is the real decision-maker. Moving a toilet drain more than a few inches can add a day of plumbing work, so use the existing wet wall as your anchor.

Place fixtures using true-to-scale blocks

Use the bathroom fixture library rather than drawing boxes. ArchiMaster 3D's blocks are true to real dimensions: a standard tub is 60 inches by 30 inches, a round-front toilet is about 27 inches deep, an elongated toilet about 30 inches, and a pedestal or wall-hung sink can be as shallow as 18 inches. Drag the tub or shower into place first, then the toilet, then the vanity. Keep the plan view open and watch the 15-inch toilet clearance and 21-inch front clearance. If a drawer or door overlaps, nudge the vanity or switch to a wall-hung model.

• Draw the 5x8 shell, door, window, and plumbing fixtures first.
• Place the tub or shower along the existing wet wall.
• Add the toilet with 15 inches of side clearance and 21 inches in front.
• Test a 24-inch vanity, then switch to 18 or 21 inches if the walkway tightens.
• Run the first-person walkthrough before choosing tile, paint, or hardware.

Walk through and adjust

The walkthrough is where the plan either works or reveals itself. Move the camera to the doorway and look in. You should see the vanity or mirror first, not the toilet. Open the vanity drawers and the shower door. In ArchiMaster 3D you can switch to a first-person view and simulate the exact path from door to sink to shower. If the knee space under the vanity is under 27 inches wide, a seated user will feel pinched. If the shower glass swings into the toilet area, change it to a sliding or fixed panel. Small adjustments in 3D take seconds; after demolition they take days.

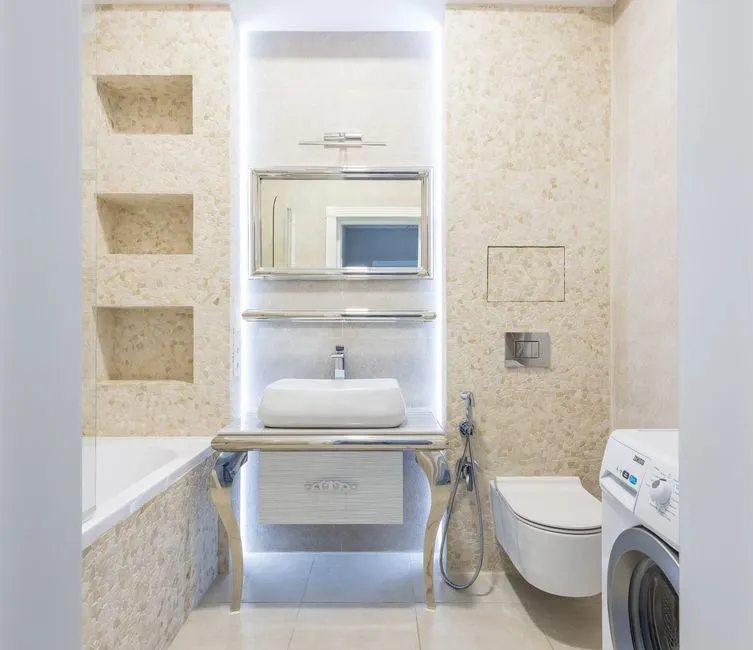

Layout Rules That Make a 5x8 Bath Feel Bigger

Small bathrooms read as larger when the floor line is unbroken and the eye is given one or two clear resting points. Use a continuous floor tile through the shower with a linear drain or a curbless entry, and run the same wall tile to at least 48 inches high. Choose a floating vanity with a 6-inch clearance below it to expose more floor. Replace a swing door with a pocket door, or keep the swing but make sure it opens out. A wall-to-wall mirror above the vanity doubles visual depth without changing the plan.

“A 5x8 bathroom is not too small for good design; it is too small for untested design.”, ArchiMaster 3D Journal

From Layout to Materials: Using 3D Rendering to Avoid Costly Mistakes

Once the plan works, the material phase is where 3D rendering pays for itself. Large-format tile can look elegant in a showroom and overwhelming in a 40-square-foot room; a 12-by-24-inch tile laid horizontally makes a narrow 5-foot bath feel wider, while a 24-by-24-inch tile can look like four giant squares. In ArchiMaster 3D, apply real tile textures, adjust grout color, and render the room under both daylight and the vanity light you plan to buy. A dark floor with light walls can anchor the room, while a dark shower wall can shrink it. Use the rendering and materials tools to render the room at eye level and check that the mirror does not bounce light into a dead corner.
