Measured Sketch to Photoreal Render: Nook Workflow 2026

To turn a measured sketch into a photoreal render in ArchiMaster 3D, draw the existing room shell from wall lengths, floor-to-ceiling heights, and diagonal checks, then place the built-in desk from the catalog and render the nook from a seated eye height. This workflow lets you test a built-in homework station in a real alcove before you spend on a fall 2026 remodel. The goal is a true-to-scale model, not a perfect architectural drawing, so you can evaluate desk depth, shelf clearance, lighting, and finish colors with photoreal previews. Start with a free trial of ArchiMaster 3D if you do not yet have the Windows software installed. The same engine powers every edition, so the steps below work whether you are using home design software as a homeowner or a remodeling pro.

• Measure wall lengths at baseboard and mid-height, plus both diagonals, to catch out-of-square alcoves before modeling.
• Use a wall thickness of 4.5 or 5.5 inches for existing drywall and stud walls, not the default exterior wall thickness.
• Place the camera at 42 to 48 inches above the finished floor to preview the nook the way a seated or standing person sees it.
• Render in small regions first, then run a full photoreal pass once the desk depth and shelf heights are confirmed.

What to Measure Before You Open ArchiMaster 3D

A tape-measure sketch only works if it records the dimensions that matter for a built-in. For an alcove or spare-room nook, measure the width of the back wall at desk height, the depth from the back wall to the front face of the opening, and the ceiling height at three points. Also measure the height of any window sill, the location of electrical outlets, and the distance from the floor to the bottom of existing crown or trim. The non-obvious check is the diagonal: measure from the upper left corner of the opening to the lower right, then the opposite diagonal. If the two numbers differ by more than half an inch, the nook is out of square and the desk top will need to be scribed or shimmed. Record the largest width, not the average, so the render does not hide a tight fit.

• Back wall width at desk height, plus mid-height and floor width if the alcove tapers.
• Depth from back wall to the front of the opening on both sides.
• Ceiling height at left, center, and right.
• Both diagonals of the alcove opening.
• Outlet and light switch locations measured from the nearest corner.
• Window sill height and trim depth if the nook has a window.

Setting Up the Room Shell from Your Sketch

Open ArchiMaster 3D and start a new project using the room or wall drawing tools. Draw the back wall first, typing the measured width instead of dragging by eye. Then draw the two side walls to the measured depth. If the nook opens into a larger room, draw only the back and side walls and leave the front opening clear. If it is a spare room, close all four walls and add a door opening. Set the wall thickness to 4.5 inches for standard 2x4 framing with half-inch drywall, or 5.5 inches for 2x6 framing. If your nook is off square, adjust one side wall by the measured difference until the plan matches the tape. ArchiMaster 3D is purpose-built for homes, so walls snap to true dimensions and the plan view stays scale-accurate. If you already have a 2D floor plan, use the import and trace workflow instead of redrawing every wall.

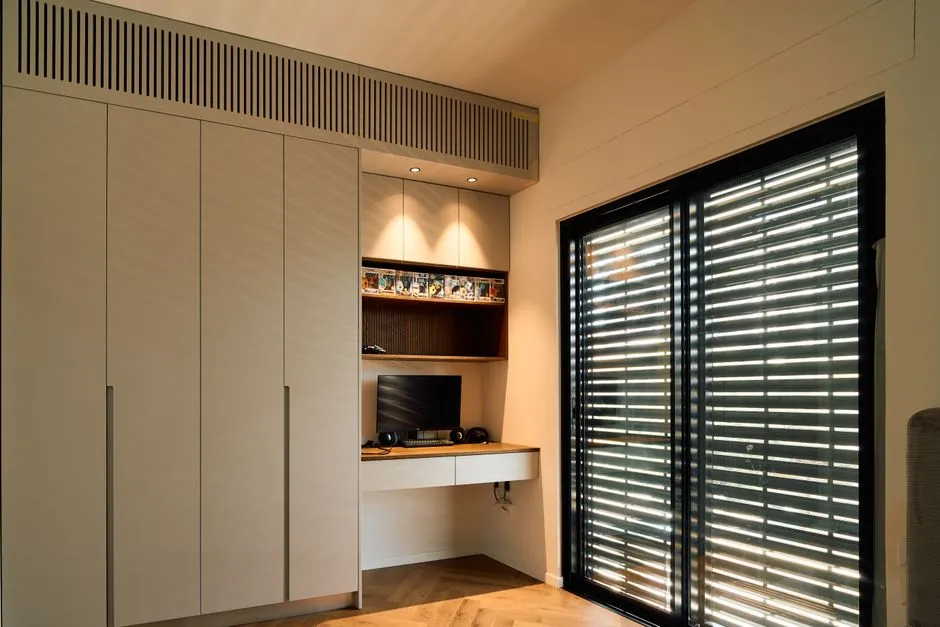

Adding the Built-In Homework Station

Switch to the furniture and cabinetry catalog and place a base cabinet or desk component against the back wall. Use the measured width and a desk depth of 24 to 30 inches, which gives enough room for a laptop or monitor while leaving knee clearance. Set the desk height to 30 inches for typing, or 28 to 29 inches for younger students. Add upper shelves or a hutch from the same catalog, keeping the bottom shelf at least 18 inches above the desk surface. If the nook has a window, place the desk below the sill only if the sill is above 30 inches; otherwise use a side return or a lower reading bench. The key insight is that you are modeling the clearances, not decorating yet, so leave 36 inches of walking space in front of the desk.

Checking Fit Before You Commit to a Design

Use the plan view to test the largest objects that need to fit. A typical task chair needs a 30-inch circle of clear floor space, and a printer or file drawer may add another 12 to 16 inches of depth. In ArchiMaster 3D, place a chair from the catalog and rotate it in plan view to confirm the seat can pull out without hitting a bed, door swing, or closet. If the nook is only 24 inches deep, choose a wall-mounted desk with no base cabinets and use vertical storage above. This single check can prevent the most common built-in mistake: ordering a beautiful desk that leaves no room to sit.

Materials, Lighting, and Camera Settings

Assign real materials from the ArchiMaster 3D library before rendering. For a homework nook, test a matte white or light oak finish on the desk and open shelves, then test a darker accent on the back wall to see how it changes perceived depth. Use the camera tool to set the view at 42 to 48 inches above the finished floor, roughly the eye height of a seated user, and place the camera just outside the nook opening. Add a ceiling light or can light above the desk, and if the nook has a window, set the render time to a fall afternoon so you can judge glare. ArchiMaster 3D's photoreal rendering engine applies the same lighting and materials across every edition, so the preview matches what you see in the final image.

“Measure the diagonals twice, and render before you order a single board. A built-in desk that does not fit its alcove is an expensive mistake you can catch on screen in ten minutes.”, ArchiMaster 3D Journal

Running the Photoreal Pass and Refining

Render the nook first at a medium quality with lighting previews, then inspect the image for scale problems: a desk that looks too deep, shelves that crowd the window, or a monitor that blocks the only outlet. Change dimensions in the plan, not by stretching the furniture in the render view. Once the dimensions are right, run a full photoreal pass at a higher resolution. If you need to show the result to a contractor or partner, create a quick 3D walkthrough so they can move through the nook instead of viewing a single still. Save a few variations with different desk depths and finishes, and compare them side by side before committing to a fall remodel.
