3D Kitchen Design: Model Your Existing Kitchen for Fall 2026

For a fall kitchen remodel, you can model your existing kitchen in ArchiMaster 3D in about an hour, then test cabinet paint, counters, backsplash, and undercabinet lighting before any demolition. The method is measure the room as built, rebuild the shell and cabinets at true sizes, swap finishes from the material library, and render with low autumn afternoon light. That sequence turns a vague refresh list into a visual, contractor-ready plan, and it catches problems a fresh inspiration board never will.

• An as-built 3D model exposes out-of-square corners, soffit depth, and window trim conflicts that a blank floor plan hides.
• Cabinet paint, new counters, backsplash tile, and lighting are all material-swap tests. None requires changing the floor plan or moving plumbing.
• Use standard kitchen geometry as a fast check: 36-inch-high counters, 24-inch-deep base cabinets, 12-inch-deep uppers, and an 18-inch clearance between counter and upper cabinets.
• Rendering the same fixed camera angle under 4 p.m. late-fall light creates the only honest before-and-after comparison.
• A measured ArchiMaster 3D kitchen model can be reused later for layout tests, lighting studies, and client-ready 4K stills without rebuilding geometry.

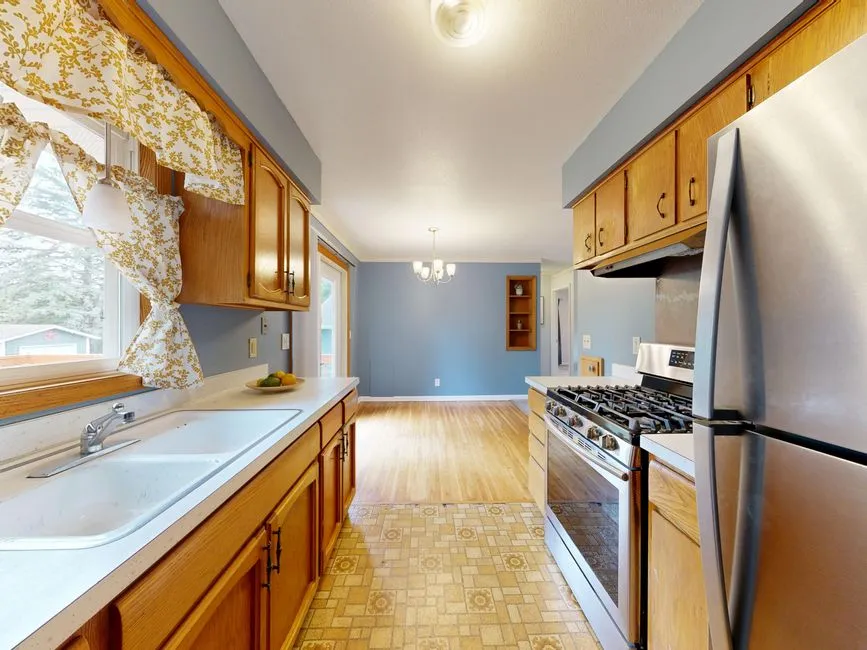

Why an as-built model beats a fresh inspiration board

The highest-value move in a fall kitchen refresh is to model the kitchen you actually have, not a catalog kitchen with perfect walls and no soffits. Existing obstructions like a 42-inch refrigerator pocket, a window sill that interrupts the backsplash, a soffit over the uppers, or a peninsula that shortens the work triangle all change how a new finish will read. Build those features first, even if you plan to keep them. The model then shows why a dark painted upper cabinet can make a low-ceiling kitchen feel shorter, or why a busy backsplash competes with a hood that already carries visual weight. For a refresh that avoids moving plumbing altogether, the same as-built approach applies; see 2026 Fall Kitchen Refresh: 3D Design Without Moving Plumbing for the finish-first workflow.

Start with a room shell: dimensions and diagonal checks

Open ArchiMaster 3D and choose a blank plan rather than a template. Templates start clean, but an existing kitchen needs the quirks of your room. Measure and record every dimension before touching the software. A tape measure and a laser distance tool are enough. For ceilings, take measurements at three points; a 96-inch ceiling can drop to 94 inches at a soffit and change where full-height cabinets fit. For walls, record each run length from corner to corner, including the thickness of any trim. For windows, record the opening width, total trim width, sill depth, and height above the floor.

• Wall lengths between corners, measured at counter height and at floor level
• Ceiling height at three spots, plus soffit depth and height above the floor
• Window opening width, trim width, sill depth, and sill height above the floor
• Door opening width, casing width, and swing direction
• Base cabinet run length, depth, toe kick height, and counter overhang
• Upper cabinet depth, height, distance above the counter, and distance below the ceiling or soffit
• Appliance widths, depths, and heights for refrigerator, range, hood, dishwasher, and microwave
• Existing plumbing rough-in locations for sink and dishwasher, plus gas stub for range if present
• Distance from the main entry to the sink and range, to preserve the work triangle in your test shots

Check the diagonal before you trust the floor plan

Measure both diagonals between opposite corners. If the two diagonal measurements differ by more than 1/2 inch, the room is out of square. In the model, draw the room with the measured wall lengths, then nudge one corner until the diagonal matches. Forcing square walls will misalign a full run of base cabinets with the real room, and the error compounds across a 12-foot counter. Out-of-square rooms are common in older homes, attics, and additions.

Rebuild the existing kitchen in ArchiMaster 3D

With the room shell closed, switch to the cabinet library in 3D home design software. Drag base cabinets onto the run and set each cabinet's width to the actual door and drawer fronts. Standard base cabinets are 24 inches deep and 34 1/2 inches tall, with a 1 1/2-inch counter bringing the work surface to 36 inches. Uppers are usually 12 inches deep and sit 18 inches above the counter. Match the existing door profile first; color and material are temporary. The profile drives the shadow lines in the model, so an accurate door shape matters more than a perfect color at this stage. If you are not sure which edition fits your remodel, the products page explains the four ArchiMaster 3D editions and which kitchen and bath tools are included.

Enter appliances and the details that change light

Model the refrigerator, range, hood, and dishwasher as full-depth boxes even if the refresh keeps them in place. The hood's projection and the refrigerator's side panel affect where shadows fall in an afternoon render. Add any existing undercabinet light valance, pendant canopies, and window trim. These small pieces change the light test more than most people expect. If you want to follow along before deciding, download a free trial from the downloads page and open the same blank template used in this workflow.

Test the fall refresh ideas without moving plumbing

Cabinet paint is a color change, not a structural change. Select a cabinet run in the model, open the material editor, and replace the finish. Test three fall palettes in sequence: greige uppers with deep green lowers, a full navy island, or warm white uppers over walnut-stained lowers. Because the geometry does not shift between tests, the comparisons stay fair. Keep cabinet hardware in the same finish until the color palette is set; knobs and pulls read differently against dark and light paint. The model lets you switch hardware later as a separate pass.

Swap counters and backsplash as one continuous material

Counters and backsplash read as one visual band in a small kitchen. Change them together: a soapstone-look quartz with a warm white backsplash, or a pale quartz with a zellige-look tile. The renderer's material response shows how grout lines and edge profiles catch cool morning light or warm afternoon light. If the existing backsplash area is only 18 inches tall, a busy pattern can fracture the wall; a quieter tile often lets the counter and cabinet color lead.

Move the light, not the wall

Add undercabinet LED strips as actual light fixtures in the model and set their color temperature to 3000K. A north-facing fall kitchen gets bluish daylight, so 3000K strips warm the counter. A south-facing kitchen gets strong afternoon glare; test a matte backsplash and a slightly warmer bulb to reduce the hotspot. The lighting tool in ArchiMaster 3D lets you render both morning and 4 p.m. views from the same camera angle, which shows how the room changes as the sun moves.

Render comparisons that make decisions easy

Save one camera angle at the main entry and a second at the sink window. For each finish option, render a 4K still with the same exposure and white balance. The photoreal rendering engine uses physically based materials, so paint sheen, stone texture, and metal finishes stay consistent between tests. A fixed view removes the variable that ruins most before-and-after judgments. Set the render date to late October or early November in the lighting controls. The low sun sends horizontal light through windows and makes wall texture more visible. Test the backsplash under that low-angle light before choosing a high-gloss tile; the same tile can look flat at noon and overly reflective at 4 p.m.

“A fixed camera angle is the only honest way to compare cabinet paint, counters, and backsplash before you buy a single sample.”, ArchiMaster 3D Journal

Turn the tested model into a contractor-ready plan

Export a dimensioned plan and label each elevation with the finish selections: cabinet paint color, counter material, backsplash layout, and light fixture positions. The model becomes a scope document. Contractors estimate faster, and the homeowner avoids change orders from mismatched expectations. If the refresh later grows into a bigger layout question, reuse the same geometry to test an L-shaped or U-shaped kitchen. The comparison workflow is covered in 2026 Kitchen Layouts: Test L-Shaped vs U-Shaped in 3D. For a smaller adjacent project, the same measure-then-model method works in a compact bath; see Small Bathroom Design 2026: 5x8 Layout to 3D Walkthrough.
